Description

FULL SPECS

Length 12’
Width 77”
GVWR Rating 2,995#
Empty Weight 1,080#
Payload Weight 1,915#
Frame 3” x 2” x 3/16” Angle
Cross Members 3” x 2” x 3/16” Angle
Top Rail 2-3/8″ OD Pipe Top Rail
Uprights 2” x 2” Angle
Coupler 2” A-Frame

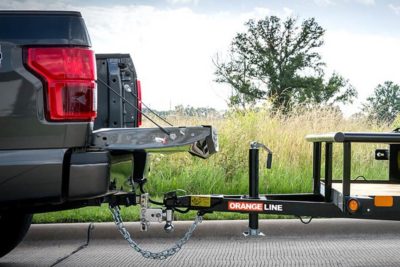

Jack 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot
Fenders 9” x 32” Rolled Steel w/ Back
Axle Dexter Brand, 3,500# Axle w/ EZ Lube Hubs
Brakes None
Suspension Multi-Leaf Spring

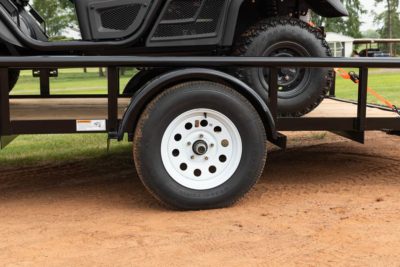

Tires ST205/75R-15 Load Range C
Wheels 15” x 5”; White Mod, 5 on 5 Bolt Pattern
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 4-Way Flat w/ Loom
Wiring Protected Wiring Package

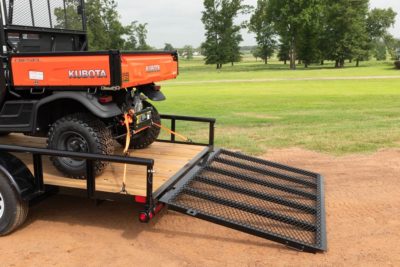

Rampgate 4’ Tall Rear Rampgate w/ Coil-Spring Assist
Cargo Control (4) Tie Down Loops Inside Bed
