Description

FULL SPECS

Length 17′ + 3″
Width 83”
GVWR Rating 14,000#
Empty Weight 2,950#
Payload Weight 11,050#
Frame 6” Channel
Cross Members 3” Channel
Front Stop Rail Square Tubing Front Stop Rail
Dovetail 3′ Cleated Dovetail

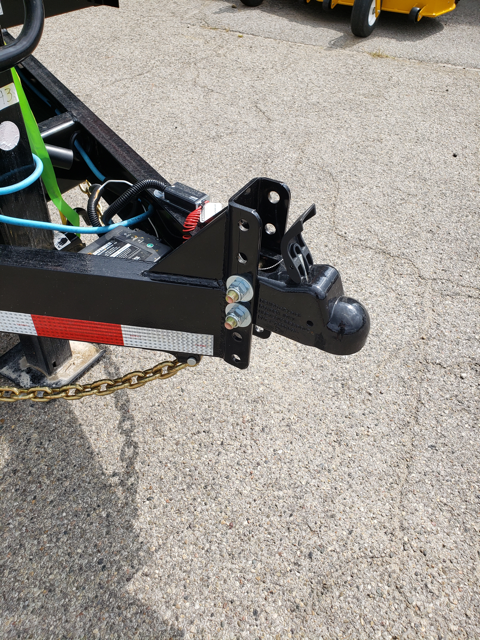

Coupler Adjustable, 2-5/16” Demco EZ Latch Coupler

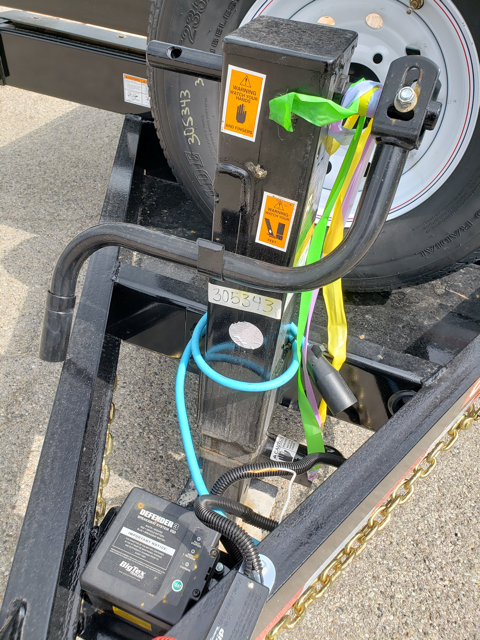

Jack 12,000# Side Wind, Set-Back Jack w/ Drop Leg
Fenders Removable 9” x 72” Double-Broke Diamond Plate Steel
Axles Dexter Brand, 7,000# Axles w/ EZ Lube Hubs
Brakes Nev-R-Adjust Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer

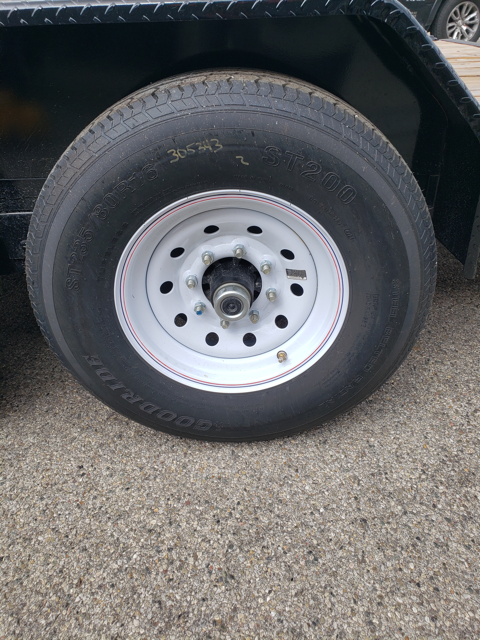

Tires ST235/80 R-16 Load Range E
Wheels 16” x 6”; White Mod, 8-Lug
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness

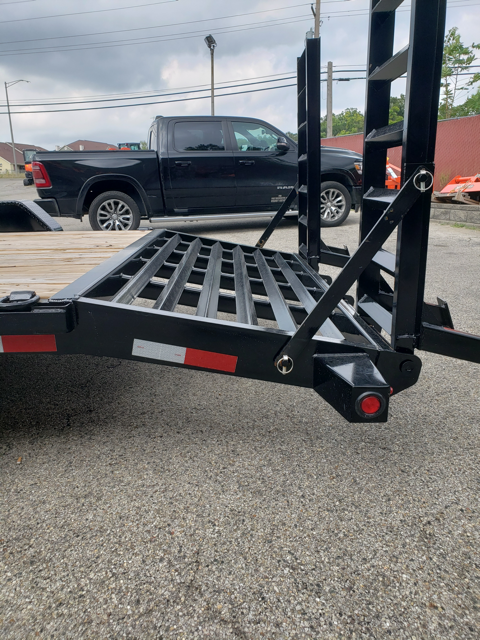

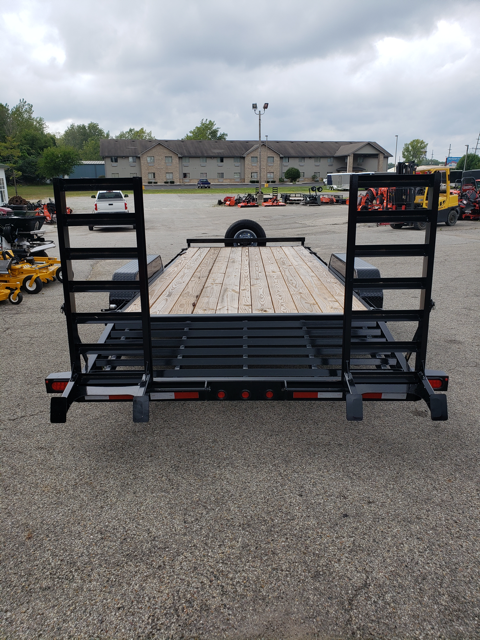

Ramps 4′ Tall Knee Ramps
Cargo Control Rubrail & Tie-Down Pockets Along Sides + (6) D-Rings
