Description

FULL SPECS

Length 16’
Width 77”
GVWR Rating 6,000#
Empty Weight 1,630#
Payload Weight 4,370#
Frame 3” x 2” x 3/16” Angle
Cross Members 3” x 2” x 3/16” Angle
Top Rail 2-3/8″ OD Pipe Top Rail
Uprights 2” x 2” Angle
Coupler 2” A-Frame
Jack 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot
Fenders 9” x 72” Rolled Steel w/ Back
Axles Dexter Brand, 3,500# Axle w/ EZ Lube Hubs
Brakes Nev-R-Adjust Electric Brakes on All Hubs
Suspension Multi-Leaf Spring w/ Equalizer
Tires ST205/75R-15 Load Range C
Wheels 15” x 5”; White Mod, 5 on 5 Bolt Pattern
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Protected Wiring Package

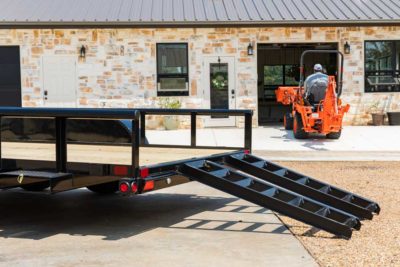

Ramps 4′ Slide-In Ramps (Side Pockets)

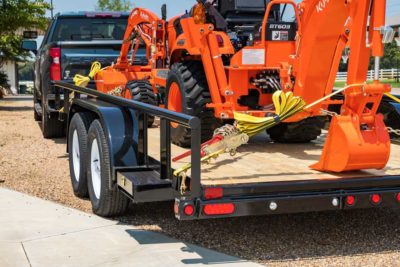

Cargo Control (6) Tie Down Pockets Along Sides
