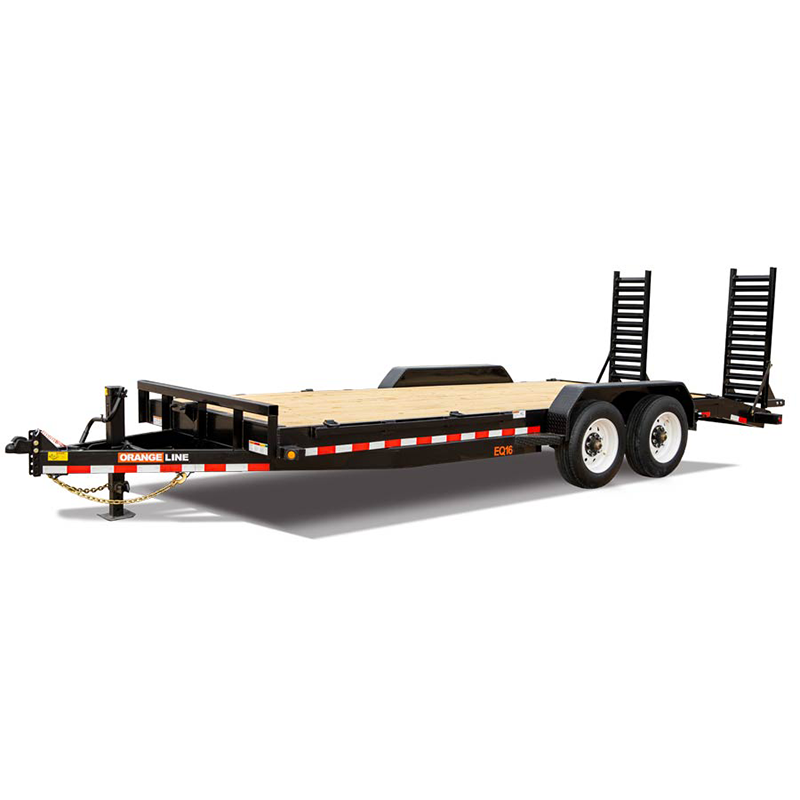

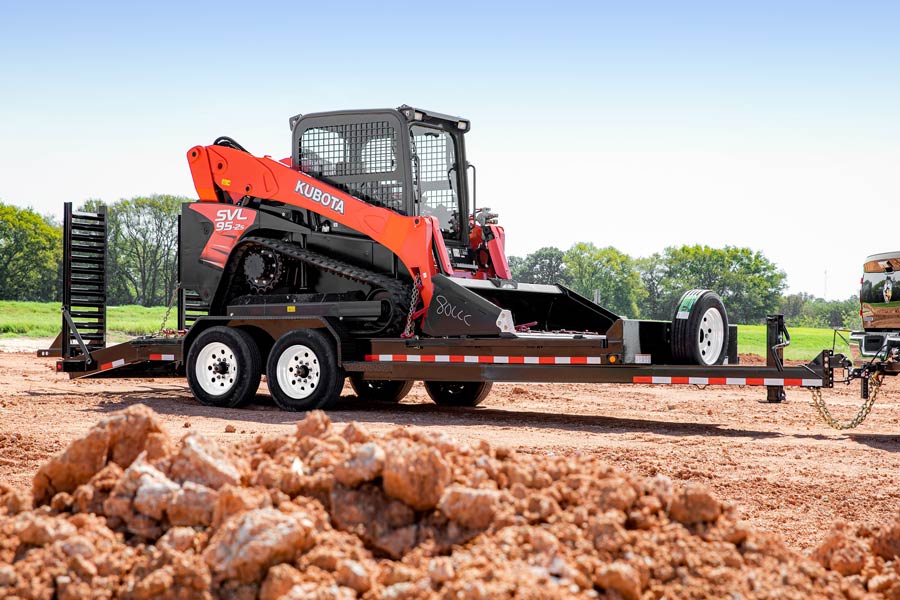

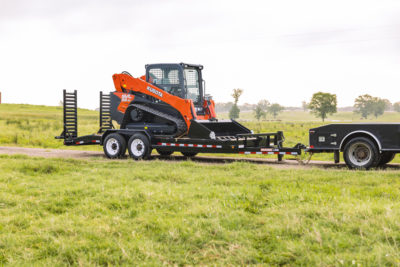

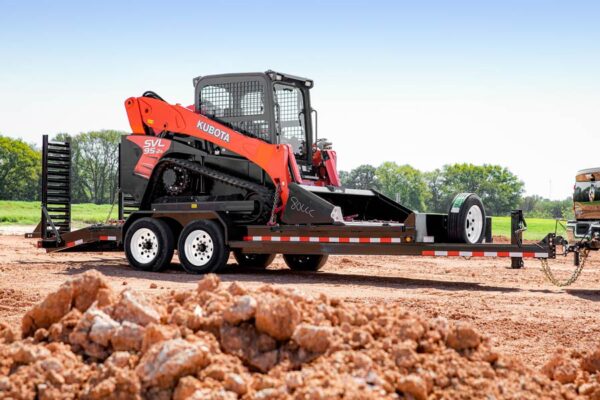

Description

FULL SPECS

Length 17′ + 3″
Width 83”
GVWR Rating 17,500#
Empty Weight 3,710#
Payload Weight 13,790#
Frame 8” Channel
Cross Members 3” Channel
Front Stop Rail Square Tubing Front Stop Rail
Dovetail 3′ Cleated Dovetail
Coupler Adjustable, 2-5/16” Demco EZ Latch Coupler
Jack 12,000# Side Wind, Set-Back Jack w/ Drop Leg
Fenders Removable 9” x 72” Double-Broke Diamond Plate Steel
Axles Dexter Brand, 8,000# D80N Axles w/ Oil Bath Hubs
Brakes Nev-R-Adjust Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tires ST215/75 R-17.5 Load Range H
Wheels 17.5” x 6.75”; White Mod, 8-Lug
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness
Ramps 5′ Tall Heavy-Duty Stand-Up Ramps
Cargo Control Rubrail & Tie-Down Pockets Along Sides + (6) D-Rings
